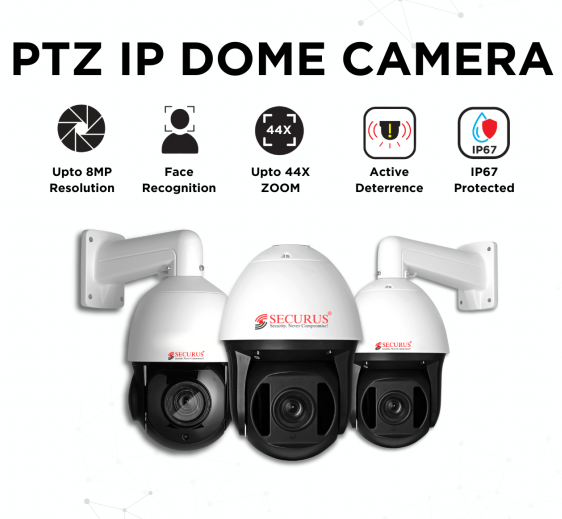

Securus Speed dome camera

Make

SECURUS

Image Sensor

1/2.8, 3.0 Megapixel, progressive scan, CMOS

Lens

5mm ~ 75mm (15x optical zoom)

Auto control IR LED

PWM

IR Distance

6Pcs IR LEDs

Iris

Auto/Manual; F1.6 ~ F4.8

Shutter

Auto/Manual

Shutter Time

1/25s ~ 1/100000s

Minimum Illumination

 Color: 0.005Lux@F1.2 B/W: 0.001Lux@F1.2 (IR ON: 0.0 Lux)

S/N Ratio

50dB

Day/Night Mode

IR-Cut filter with auto switch (ICR)

IR Distance

60 Meters

Audio Compression

G.711

Audio Input

Supports built-in Audio (Optional)

Video compression

H.265AI, H.265+, H.265, H.264

Video Resolution

2304 x 1296 Pixels (Max)

CVBS Output

Supports 1 x BNC Video Output (Optional)

Frame Rate

2304 x 1296; 1920 x 1080; 720 x 576; 20/25/30 FPS

Video Streaming

Triple Streams

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 Areas

Digital Zoom

Supports

Alarm I/O

1/1 (Optional)

Intelligent AI Feature

Face Detection, Line Crossing, Trip Wire, Active Deterrence, Human Auto Tracking

Network Protocols

TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS,HTTPS, 802.1X, P2P

Software Control

IE, CMS, P2P(P6SLite)

Pan Range

0~360

Pan Speed

0/s ~ 80/s

Tilt Range

-0 ~ +93

Tilt Speed

0/s ~ 40/s

Auto Flip

Pan: 180; Tilt: 93

Presets

220/500 Presets

Dwell Time

1s ~ 60s Selectable

Guard Tours

3 Tours

Guard Points

Max: 16 Points

Communication Protocol

Pelco-D; Pelco-P

Baud Rate

9600BPS (Default)

A-B Scan

User programmable (Scan Speed 1-64 levels setting available)

BLC

Support

AGC

Auto/Manual

WB

Auto/Manual/Indoor/Outdoor

DNR

2DNR, 3DNR

WDR

DWDR

Park Time

1 ~ 60 Minutes

SD Card

Supported (Max: 512 GB) (Optional)

Network

10M/100M Base-TX Ethernet

Power Supply

12V 3Amp/POE(802.3at)

Power Consumption

25W (Without IR)

Multiple Browsers

Supports (Chrome, Mozilla, Edge, Opera)

Housing Material

Aluminum + ABS

Weight

5.28 KGs

Working Temperature

-40C ~ +60C

Working Humidity

90% RH (Non Condensing)

Ingress Protection

IP67

Lightning Protection

Transient Voltage 6000V

Certifications

CE, FCC, ROHS
